PRODUCT DETAILS
PGB | Pistol Grip Button
The XVIA PGB is a sealed, glove-friendly pistol grip trigger designed for co-driver operated functions in high-vibration race environments.
PGB is a momentary, normally-open raw contact switch, ideal for pulling a digital input to ground when activated. It integrates cleanly with ECUs, PDMs, and XVIA driver modules like the BOD.

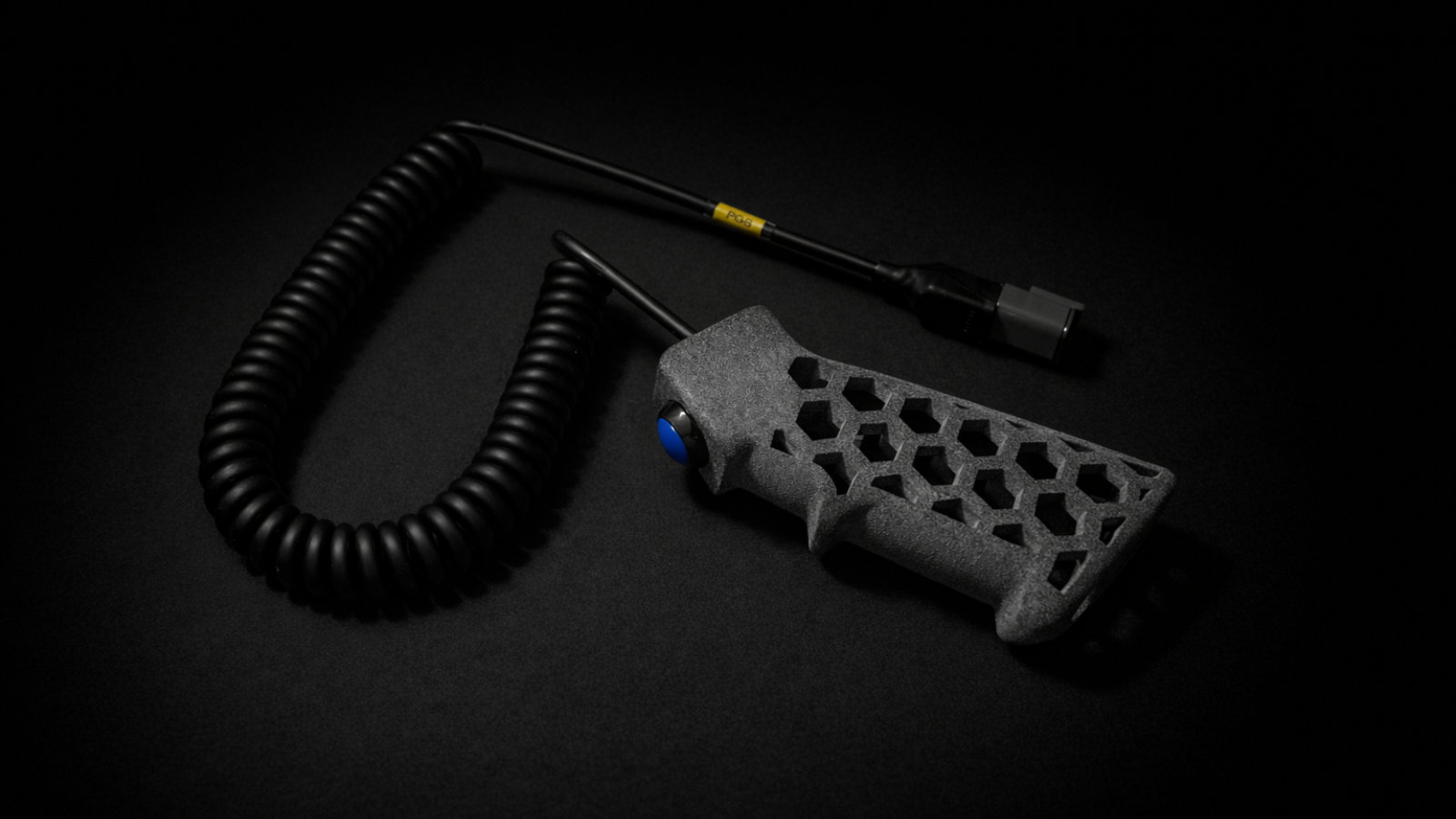

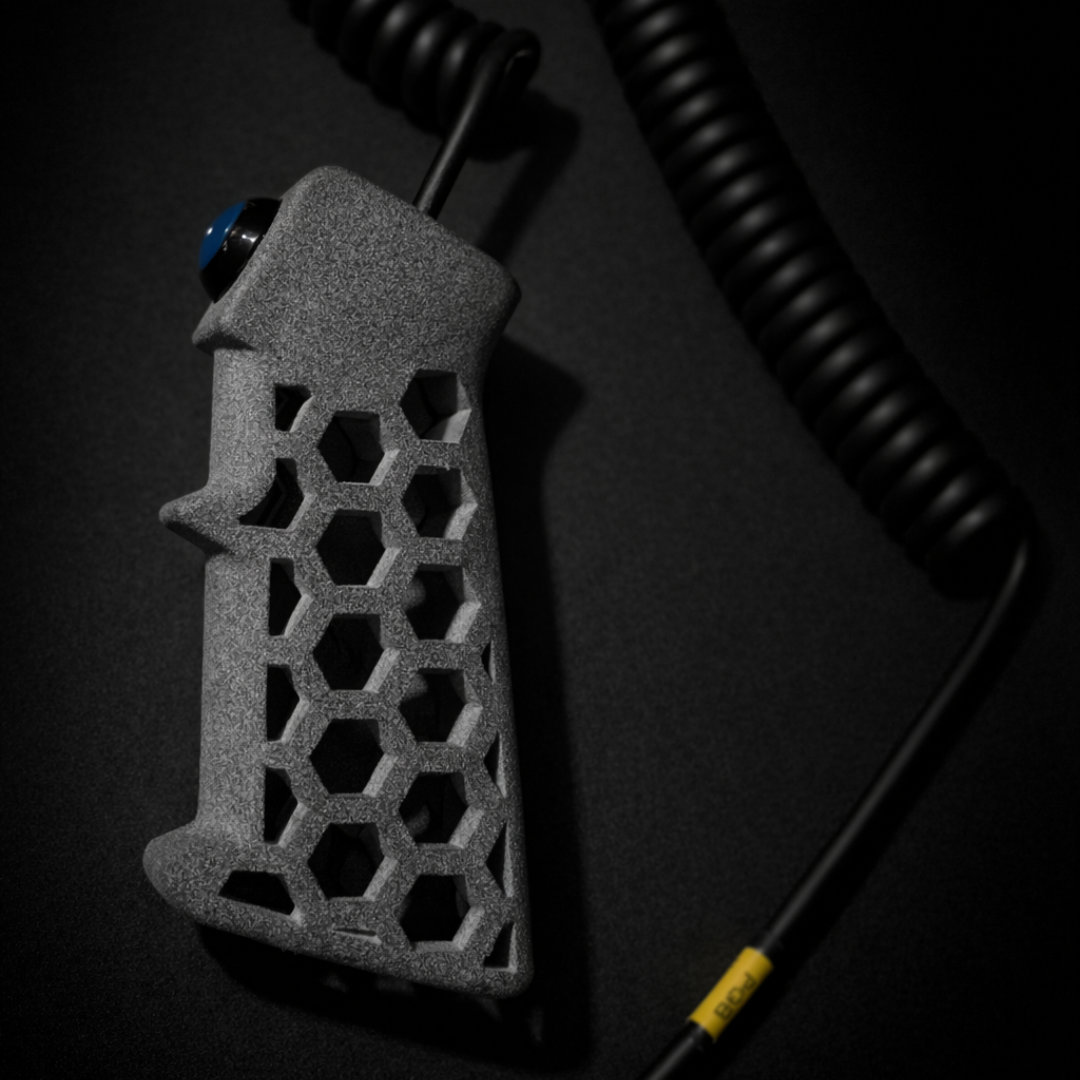

Built around a lightweight Nylon 12 honeycomb housing and a motorsport-grade coiled cord, PGB stays simple, reliable, and easy to integrate.
Sealing
IP69K sealed
Switch
Momentary, N.O.
Wiring
Spec 55, coiled
Termination
DTM04-2P (std)
Housing
Nylon 12, lightweight
Temp
-40°C to +85°C

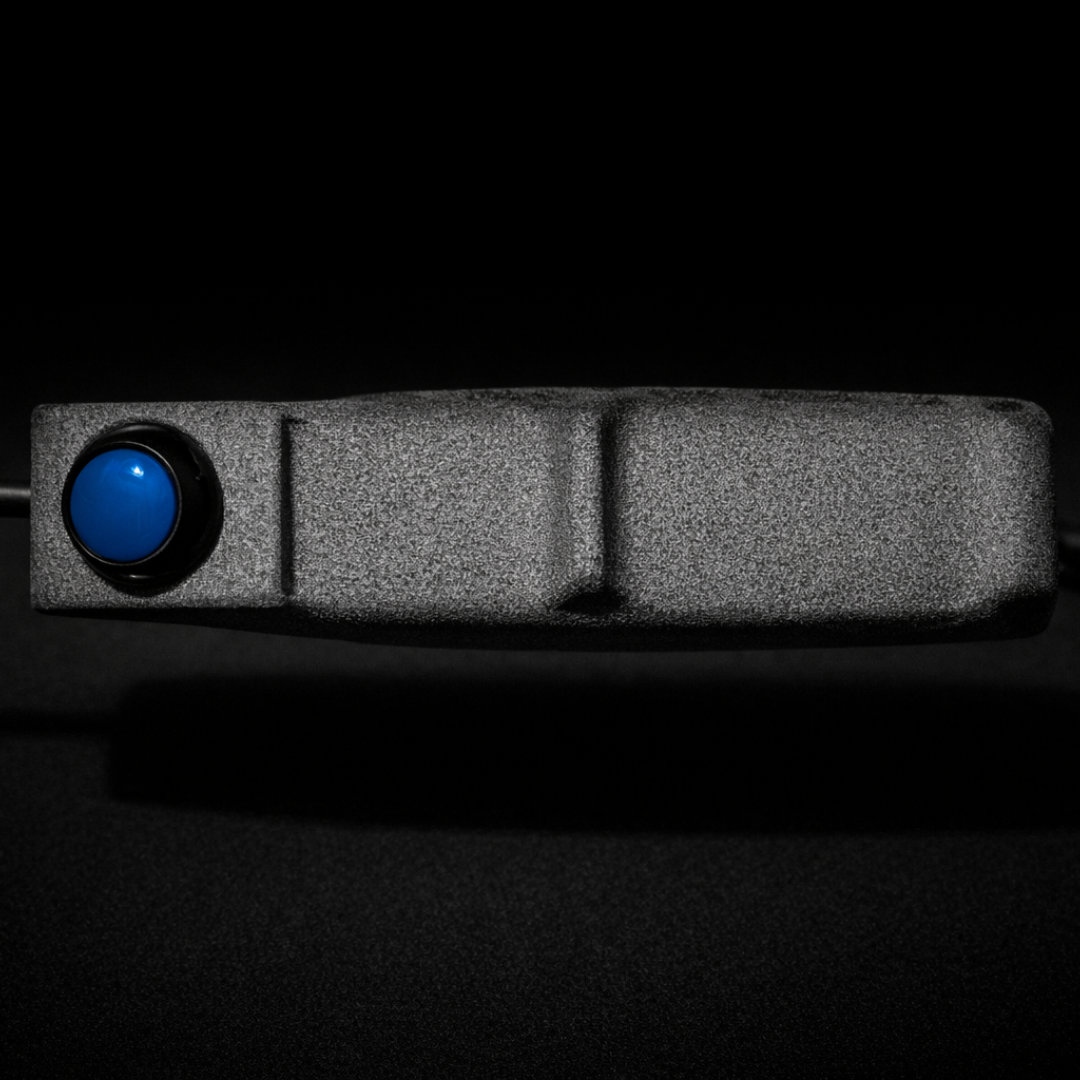

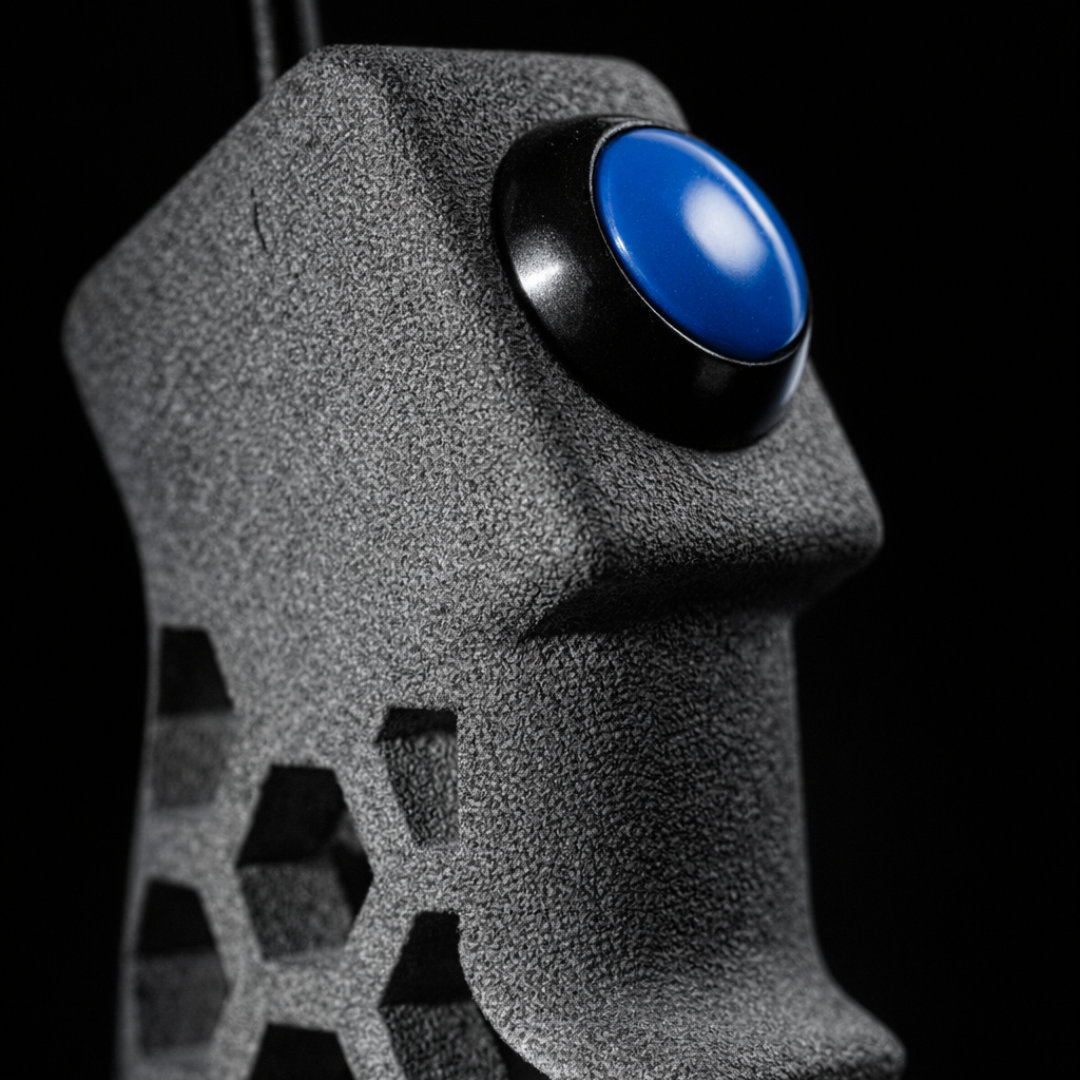

GALLERY
INTEGRATION NOTES
PGB is a two-wire, normally-open raw contact switch. Connect one lead to the digital input signal and the other to sensor ground. Use a pulled-up input so PGB pulls the signal down to ground on press, and add software debounce if needed.

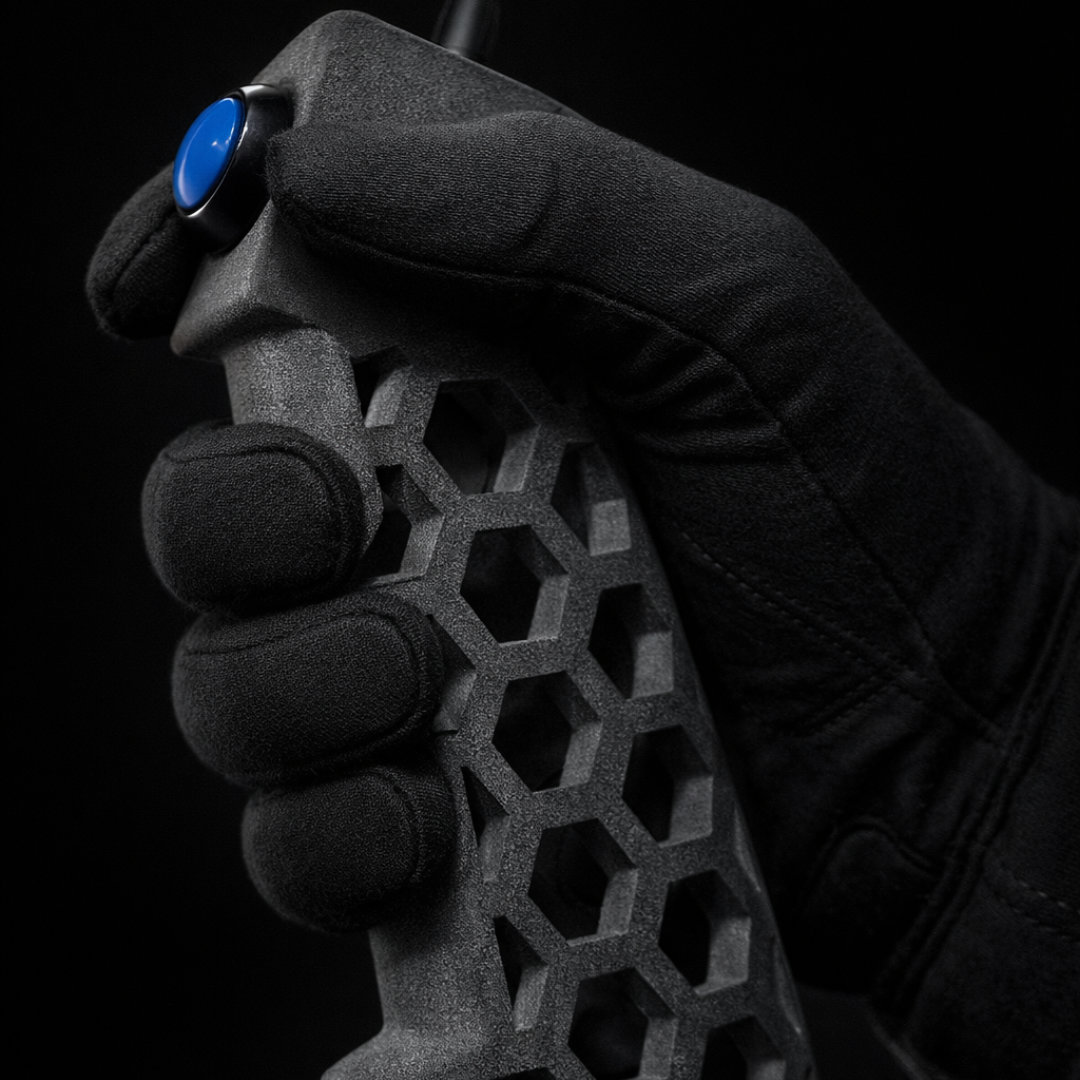

It’s built for handheld co-driver triggers, sealed inputs in dust and washdowns, and gloves-on operation tied to ECU, PDM, BOD, or suspension override logic.
TECHNICAL SPECS
Function
Momentary, normally open
Button travel
0.080 in max
Operating force
12 oz ± 4 oz
Load rating
28 VDC, 5 A
Logic rating
5 VDC, 10 mA
Materials
Nylon 12
Cord type
Spec 55 / Tefzel 26 AWG
Cord length
13 in to 39 in
Connector
DTM04-2P
Sealing
IP69K
Operating temp
-40°C to +85°C
TYPICAL APPLICATIONS
Handheld co-driver trigger functions where sealing, tactile feel, and reliability matter.
- Semi-active suspension override trigger
- Electronic suspension system command input
- ECU digital input trigger
- PDM input trigger
- XVIA BOD trigger input
“A sealed, glove-ready trigger built for vibration, dust, and real race use.”
